Arduino Simulator

Here is the list of our top 5 arduino simulators.

Virtual Breadboard for Arduino

Launched in 2005, the Arduino open hardware and software platform has grown to be very popular among hobbyists, educators, and professionals alike, gaining momentum especially in the robotics field. Backed by a massive online community, and with most development boards and hardware accessories available at very low prices, this platform is perhaps the best place to start in working with embedded devices. But what if you want to learn programming and do not own an Arduino board, or are overwhelmed by the selection of hardware out there? This is where simulation software comes in.

Virtual Breadboard for Arduino is a learning App designed to help you take the first steps in the exciting world of physical computing with the Arduino microcontroller and ‘Breadboard’ based electronic circuit models.

With VBB4Arduino you will
  • Learn from 75 built in Arduino examples
  • Explore dozens of different types of sensors, motors and lights
  • Learn the Arduino commands and what they do
  • Edit your own code examples
Download Arduino Simulator:

Download Virtual Breadboard Arduino Simulator Student Version

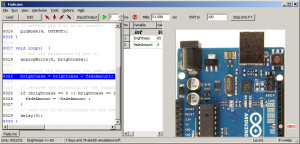

Simulator for Arduino by Virtronics



Simulator for Arduino is the most full featured Arduino Simulator available at the present time

The benefits and features of the Arduino Simulator are:
  • The ability to teach and demonstrate the inner workings of an Arduino sketch
  • Test out a sketch without the hardware, or prior to purchasing hardware
  • Debug a sketch
  • Demonstrate a project to a potential customer
  • Develop a complicated sketch faster than using the hardware
Download the free version below with a short delay timer on loading a sketch, and when ready upgrade to the Pro Version. Simulator for Arduino Pro Version is currently used in many countries over six continents. The download consists of a zip file containing a setup.exe file which installs an exe file, help files, images and examples. It is designed for the Arduino Uno, Mega and most other common Arduino boards and does the following:
  • Steps through the program line by line. If a new line is selected, the program will continue from that point.
  • Performs digitalWrite, digitalRead and PinMode for pins 0-53
  • analogRead for pins 0-16 and analogWrite for digital pins 0-53
  • Emulates Serial, LCD output, Ethernet, Servo, SD card, EEPROM, SoftSerial,SPI, Wire
  • If,while,for,switch, do whileloop functionality
  • Subroutines (multi-level) with arguments
  • View variables in real-time
  • Step Into, Step Over, Step Out of or Run mode
  • Ability to edit sketch or open in Arduino IDE
  • Tabs for separate files in the sketch
  • Context-sensitive help
  • 2 and 4 line LCD support only with improvised CGRAM
  • 2 dimensional arrays (without initialisation)
  • BreakPoint now with a conditional option
  • load custom libraries automatically after setting the Library Directory
  • Change the font, size and style of the Simulator
  • Advanced watch for easy variable viewing
  • Minimize mode for demo/training
  • Limited support for custom libraries
  • Limited support for pointer and structures
Limitations :
  • Pointers not implemented – some sketches with pointers may run but generally pointers don’t work
  • Custom Libraries, structures,classes and enums may or may not work
  • Other minor issues to do with complicated C++ commands
  • Firmata needs work
  • Mouse object will run but not yet implemented
  • typdef function pointers not implemented
  • MAC,iOS interface not implemented
  • simple typdefs work but typedef with enum or structs to be implemented


CodeBlocks Arduino IDE with Simulator

CodeBlocks Arduino IDE is a customized distribution of the open-source Code::Blocks IDE enhanced for Arduino development. It provides more demanding software developers with everything a modern IDE should have including code foldering, code completion, code navgiation, compiling as well as uploading for Arduino. With a dedicated project wizard, it’s easy create a ready-to-go Arduino project. The distribution integrates latest Arduino core files, standard Arduino libraries, AVR toolchain, Arduino Builder, a serial terminal and most interesting, an API-level Arduino simulator (under development).
Code block ide with simulator Features:
  • dedicated project wizard for Arduino development
  • integrated Arduino core files and libraries
  • compiled core files cached for faster compiling speed (comparing to original Arduino IDE)
  • integrated pre-configured AVR compiler toolchain
  • popular Arduino boards supported as build targets
  • uploading HEX to Arduino boards (Leonardo supported) by running the built target
  • Arduino API-level simulator (very early stage) integrated (as a build target)
Download Code Block Simulator:

Arduino simulator by Code Block

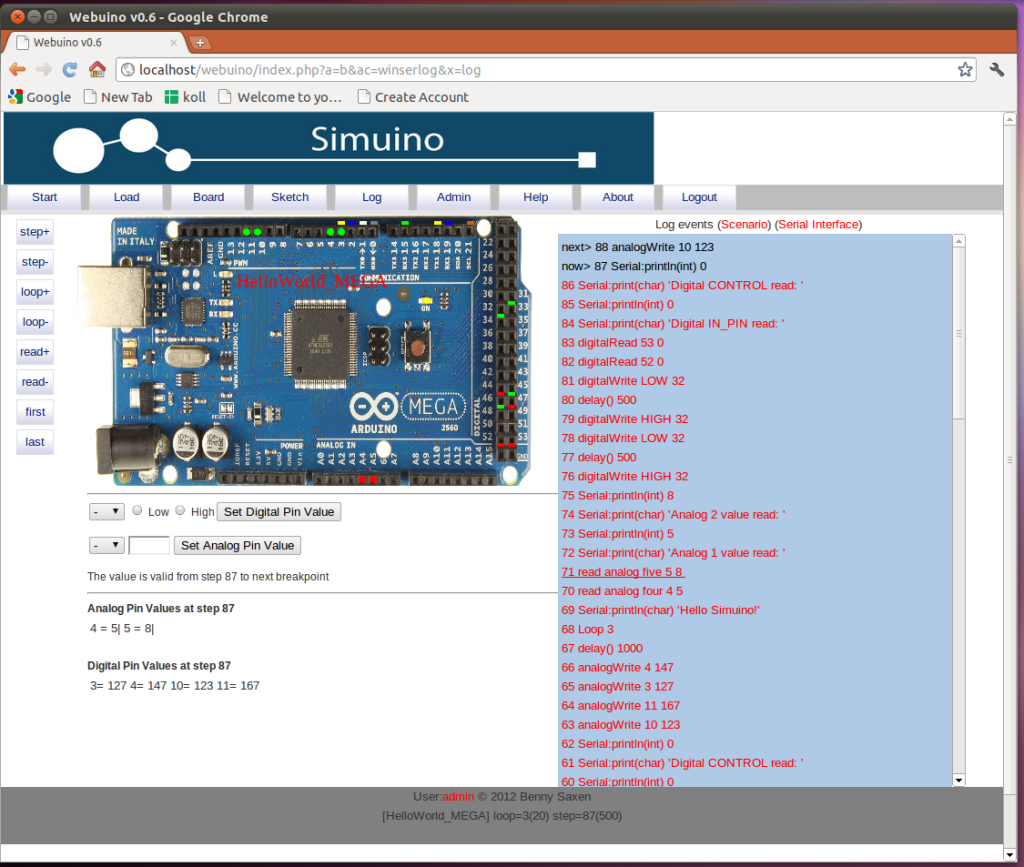

Simuino Arduino Simulator

Simuino is an Arduino UNO/MEGA Pin Simulator.

You can download the terminal version (latest version is v0.1.9) at www.simuino.com. NOTE: Downloads available on code.google.com is not the latest!

Run your sketch and evaluate in/out status of the digital and analog pins. The GUI is based on ncurses, i.e. run Simuino from a terminal window. Features animation in realtime according to actual delays in sketch.

The perfect tool for anybody who wants to get started with Arduino Sketch construction.

It is also possible to construct scenarios regarding analogRead, digitalRead and External Interrupts.

The purpose is to make the construction of a sketch easier. You can verify the functionality without having the Arduino board available. Simuino runs the sketch and shows the status of the digital,analog pins and serial output.
Source: C++ Platform: Linux (Ubuntu)
For more information, visit www.simuino.com

Way of working:
  1. Start Simuino
  2. Load your sketch into your editor of choice.
  3. Edit logic,scenario data, log-text.
  4. Load sketch into Simuino (command load in Simuino)
  5. Evalute simulation by stepping in Simuino. Set values on the fly
  6. Repeat 3,4,5 until wanted result.
Download This Simulator:


123D Circuits Arduino Simulator

123D Circuits is an online electronics simulator and collaborative design platform, born from the partnership between Autodesk and Circuits.io, since in Fall 2013. It is an excellent tool for beginners who want to quickly get a grip of creating with Arduino, Raspberry Pi or other platforms right from their browser window.


Virtual circuits can be created by using the intuitive breadboard editor, or the more advanced electronic schematics or PCB editors, and ready made components and designs are also available for you to implement. Programming of the newly created circuits is possible with the code editor and operation is displayed in real time. You can also fabricate and order the electronics based on your own design.

123D Circuits is a free service, however upgraded memberships starting at US$ 12 per month will bring you discounts on orders as well as the ability to make your designs private.
Online Link to access Arduino Simulator:

http://123d.circuits.io/
